SY-4530G-01A 電子花樣機 Electronic Pattern Sewing Machine
高速穩定縫製品質，採用高剛性控制送布機構，高速縫製時仍可準確落針，收線美觀，針距穩定，厚料縫製也不會發生圖案偏差。憑藉 450×300mm 大縫製範圍、直驅動力與精准電控，成為鞋面、箱包、魔術貼等厚料與複雜工序的高效解決方案，尤其在批量生產中兼顧精度與一致性。
High-speed and stable sewing quality. Equipped with a high-rigidity feed mechanism, it ensures accurate needle positioning even during high-speed sewing, featuring neat thread trimming, consistent stitch length, and no pattern deviation even for thick material sewing. With a large sewing area of 450×300mm, direct-drive power and precise electronic control, it serves as a high-efficiency solution for thick materials and complex processes such as shoe uppers, luggage & bags, and hook-and-loop fasteners, and particularly balances precision and consistency in mass production.

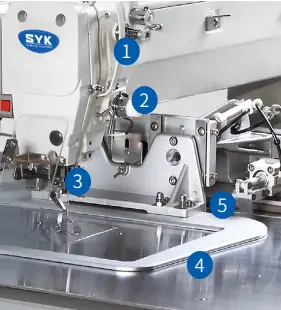

優勢性能 Dominant performance
1.斷線檢測裝置。
2.可程式設計的線張力。
3.針杆採用離子電鍍GIC鍍層實現無油化處理工藝。
4.外壓框兩段式下壓，第一次壓力較小，便於物料夾具調整位置，第二次下壓力較大壓緊物料夾具達到精准對位，精准車縫。
5.快速夾具裝置，能夠快速更換模具，節省大量時間，多個模具迴圈應用。
1.Break detection device.
2.Programmable line tension.
3.The needle rod is oil-free by ion electroplating GIC coating Processing3technology.
4.The external pressure frame is pressed down in two stages. The firstpressure is small, which is convenient for adjusting the position of the materialfixture. The second pressure is large, and the material fixture is pressed toachieve accurate alignment and precise sewing.
5.Fast fixture device, can quickly change the mold, save a lot of time, canmake multiple mold cycle application.

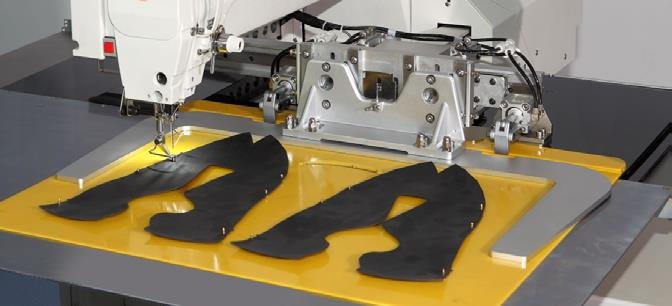

縫製實例Sewing instance

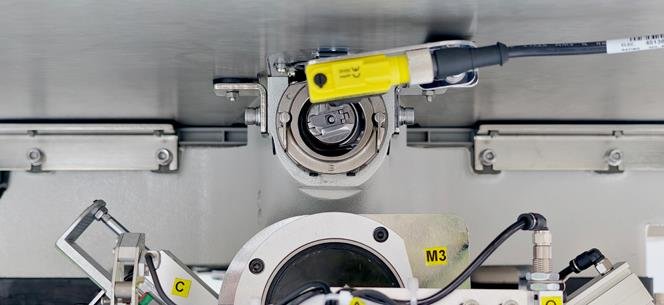

電腦花樣機自動換梭裝置 ( 選購件 ) Automatic shuttle-changing device of computer flower prototype(optional)

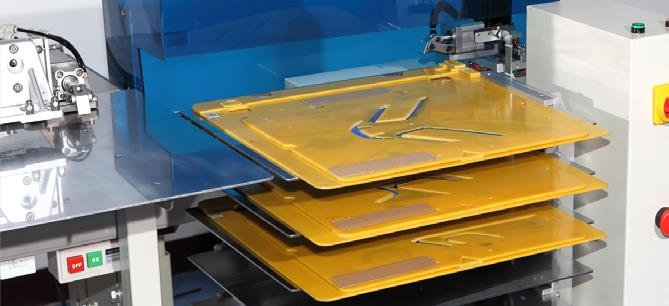

自動模版交換機 ( 選購件 ) Automatic template switch(optional)
